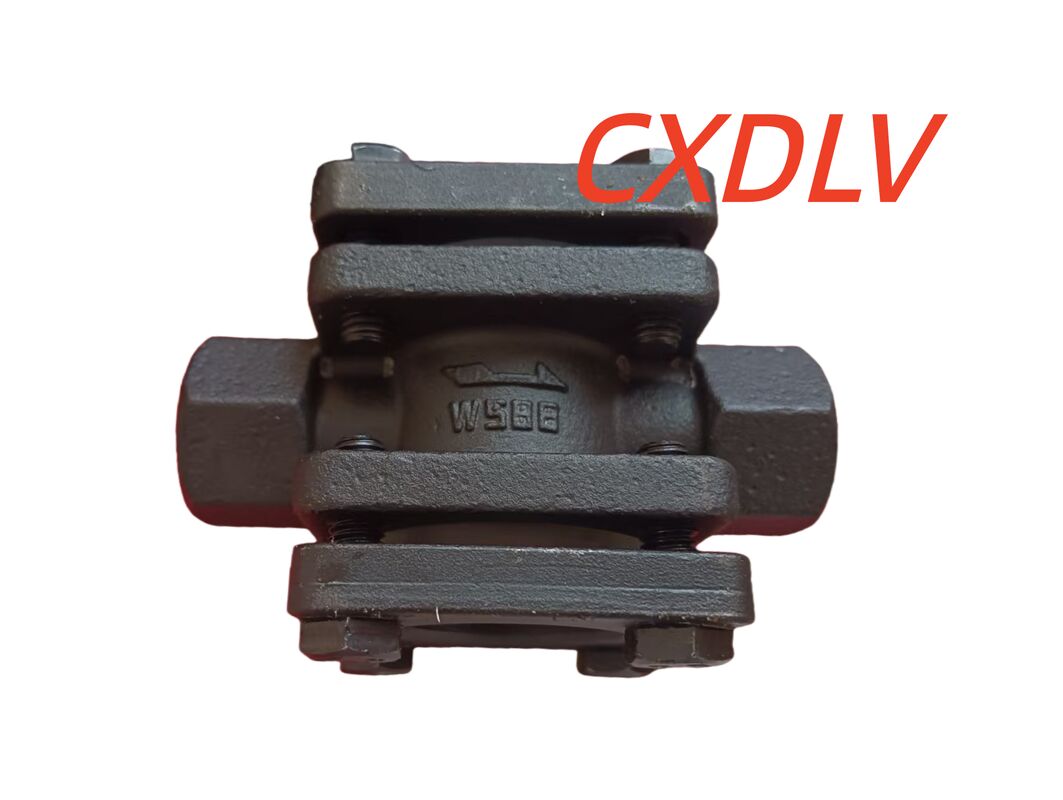

ANSI/GB Threaded carbon steel Flow Indicator Flanged Sight Glass stainless steel
Produktdetails:
| Herkunftsort: | Wenzhou, China |
| Markenname: | CXDLV |
| Zertifizierung: | CE&ISO |
| Modellnummer: | Sg |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1Stk |
|---|---|
| Preis: | Verhandelbar |
| Verpackung Informationen: | Geeignete Sperrholzfälle nach verschiedenen Ventilstruktur |
| Lieferzeit: | 7 ~ 25 Tage |
| Zahlungsbedingungen: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Versorgungsmaterial-Fähigkeit: | 1000 PCS/Mon |
|
Detailinformationen |
|||
| Körpermaterial: | CF8, CF8M, WCB | Verbindung: | BSP, npt |
|---|---|---|---|
| Glas: | Borosilikat | Druck: | PN16 |
| Größe: | DN15 ~ DN50 | Farbe: | Silbrig |
| Hervorheben: | ANSI threaded carbon steel sight glass,flanged flow indicator stainless steel,GB threaded flanged sight glass |
||
Produkt-Beschreibung
ANSI/GB Threaded carbon steel Flow Indicator Flanged Sight Glass stainless steel
Product Feature
The flow indicator is also called the sight glass.Its work to observe the flow of medium in the pipeline.Widely used in petroleum,chemical,chemical fiber,medicine,food and other industrial production equipment,can observe the flow of liquid,gas,steam mediumreaction,its indispensable to guarantee the normal production accessories in factory productions.Flow indicator include female thread flow indicator and flanged flow indicator.
1.the usage of flow indicator
Used to observe the medium flow in the pipeline situation.
2.flow indicator is a practical product easy to observe and install
At least it is ok to pass through the media.Both ends can be used as an entrance,simple,direct and reliable. and it's easy to obseve and install.
3.the chatacteristics of traffic indicator
A.Window surface glass is easy to clean
B.The glass window can be 180 direction of observation
C.With legislation,lying dual easy to install or disassemble
Technical Data
| d | L | W | ΦXG | H | |
| DN15 | 15 | 100 | 60X60 | 45X10 | 60 |
| DN20 | 20 | 100 | 60X60 | 45X10 | 70 |
| DN25 | 25 | 115 | 71X71 | 55X10 |
80 |
Overview
A sight flow indicators is a device installed into a pipe to provide a visual of verifying liquid flow for direction and accurate flow rate. Sight flow indicators allow operators to observe the color and clarity of liquids through a window. A sight flow indicator is a body with one or more viewing windows, usually with gaskets, and a way to mount the indicator to the pipeline, such as flanged, threaded connections. Sight flow indicators are available to fit standard pipe sizes ranging from 1/4-inch to 16-inches and carry ANSI pressure ratings. Sight flow indicators may be applied to almost every phase of movement, whether it is liquid, gas or powder.
Reference
| Flange Sight Glass | Thread Sight Glass | |
| Standard | JIS,DIN,ANSI | BSP,BSPT,NPT |
| Material | CF8,CF8M,WCB | |
| Size | DN15~DN200 | DN15~DN50 |
