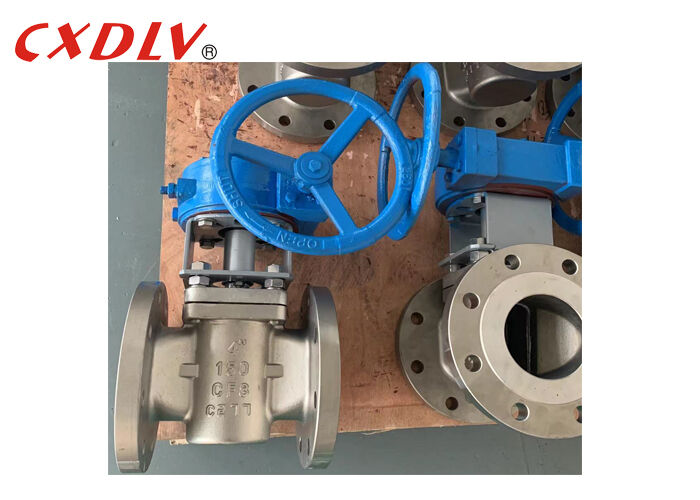

Two-Way Sleeved Plug Valve CF8 Body with Worm Gear Operation 4 Inch 150LB RF Connection
Produktdetails:
| Herkunftsort: | China |
| Markenname: | CXDLV |
| Zertifizierung: | PED/ISO |
| Modellnummer: | X43F-150LBP |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Stück |
|---|---|
| Preis: | Verhandelbar |
| Verpackung Informationen: | 1 Polywood Case/1 Set |
| Lieferzeit: | 7-30 Tage |
| Zahlungsbedingungen: | L/C, T/T, Western Union |
|
Detailinformationen |
|||
| Körpermaterial: | CF8, CF8M, WCB | Dichtungsmaterial: | PTFE |
|---|---|---|---|
| Farbe: | Silber | Standard: | ANSI150LB ANSI300LB |
| Stecker: | CF8, CF8M | Standard von Angesicht zu Angesicht: | ASME B16.10 |
| Betrieb: | Schneckengetriebe/Griffhebel | ||
| Hervorheben: | sleeved plug valve with worm gear,two-way plug valve 4 inch,150LB RF connection plug valve |
||
Produkt-Beschreibung
Two-Way Sleeved Plug Valve CF8 Body with Worm Gear Operation 4 Inch 150LB RF Connection
Specifications
- Design and manufacturing : API598
- Structure length standard : ASME b16.10
- Connection flange standard : ASME b16.5
- Pressure temperature rating : ASME b16.34
- Inspection & testing : API598.
Application
The plug valve is a valve that uses a plug body with a through hole as a starting and closing member. The plug body rotates with the valve stem to achieve the opening and closing action. It is also commonly used for media with suspended particles due to the wiping action between the sealing surfaces of the plug valve and the complete contact with the flowing medium during full opening. Another important feature of the plug valve is that it is easy to accommodate multi-channel construction so that one valve can achieve two, three, or even four different flow paths. This simplifies the piping system design, reduces valve usage, and some of the connection accessories needed in the equipment.
Plug valves are available in various types as given below:
Lubricating Plug Valve
Non-Lubricating Plug Valve
Multi-Port Plug Valves
Eccentric Plug Valve
Expanding Plug Valve
Feature
1. According to the use temperature and working medium, self-lubricating material bushings such as F4, F46, PVDF, PP, PO, PE, etc. can be used for lubrication. The sealing friction coefficient is small during the whole working process, the plug body is flexible, and the service life is long. .
2. Valve body inlet and outlet end window design and double channel groove seal ring structure. During the rotation process of the cock, the sealing ratio between the seal pairs is gradually changed until it reaches the fully open or fully closed position, resulting in sufficient sealing. Compared with the pressure, the sealing pair reaches zero leakage.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
