Robust Flanged Ball Valve Designed for Oil Water Gas and Pulp Flow Management in Various Industries Italian ball valve
Produktdetails:
| Herkunftsort: | China |
| Markenname: | CXDLV |
| Zertifizierung: | CE&ISO |
| Modellnummer: | Q71f |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Stk |
|---|---|
| Preis: | Verhandelbar |
| Verpackung Informationen: | Geeignete Sperrholzfälle nach verschiedenen Ventilstruktur |
| Lieferzeit: | 5 ~ 25 Arbeitstage |
| Zahlungsbedingungen: | T/T, Paypal, Western Union, D/A, L/C, D/P, Moneygram |
| Versorgungsmaterial-Fähigkeit: | 500pcs/Mon |
|
Detailinformationen |
|||
| Ventilmaterial: | WCB | Sitz: | PPL |
|---|---|---|---|
| Verpackung: | Flexibler Graphit | Verbindung: | Wafer |
| Größe: | DN50 | Modell: | Q71f |
Produkt-Beschreibung
Adjust Or Cut Off Oil Water Gas Pulp Or Fibro With Wafer Flanged Ball Valve

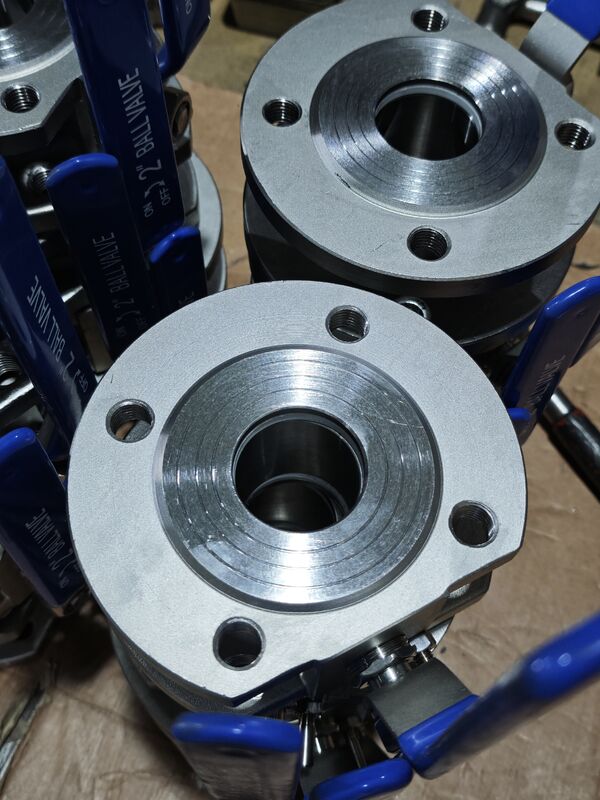

WCB Carbon Steel Wafer Thin Flanged Ball Valve with Stainless Steel Handle
Product Features
1PC Wafer Ball Valve
Applicable Standards:
- Design and Manufacturing: GB/T12237/1989
- Connection: JB/T79
- Fireproof Test: GB/T13927-1992
Size Range: DN15 ~ DN200
Nominal Pressure: 1.6 ~ 4.0 MPa
Temperature Range: -20°C ~ 350°C
Wafer Ball Valve is a new generation of ultra-short flange distance ball valve developed by introducing Italian technology for localized design. The shape of the ball channel is rectangular, V-shaped and O-shaped. The product has the characteristics of compact structure, small size, light weight and convenient installation.
Unit: mm
| Pressure | Size | L | D | D1 | D2 |
|---|---|---|---|---|---|
| PN16 | 15 | 35 | 95 | 65 | 45 |
| 20 | 38 | 105 | 75 | 55 | |
| 25 | 42 | 115 | 85 | 65 | |
| 32 | 50 | 135 | 100 | 78 | |
| 40 | 62 | 145 | 110 | 85 | |
| 50 | 72 | 160 | 125 | 100 | |
| 65 | 95 | 180 | 140 | 120 | |
| 80 | 118 | 195 | 160 | 135 | |
| 100 | 140 | 215 | 180 | 155 | |
| 125 | 195 | 245 | 210 | 185 | |
| 150 | 225 | 280 | 240 | 210 | |
| 200 | 275 | 335 | 295 | 265 |
Application
Wafer Ball Valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields to automatically adjust or cut off oil, water, gas and pulp or fibrous fluid.
Strength
- The unique design of the eccentric makes the frictionless transmission between the sealing surfaces, which prolongs the service life of the valve.
- The elastically seat generated by torque.
- Ingenious wedge design makes the valve have a tighter and tighter automatic sealing function, with compensatory and zero leakage between the sealing surfaces.
- Small size, light weight, and easy to install.
- Pneumatic and electric devices can be configured according to user requirements to meet the needs of remote control and program control.
- Replacement seat material can be applied to a variety of media.
Model Selection
Wafer ball valve
| Model No | Working Pressure /MPa | Applicable Temperature /℃ | Applicable Medium |
|---|---|---|---|
| Q71F-16P | 1.6 | PTFE≤150 PPL≤250 | Nitrose |
| Q71F-25P | 2.5 | Nitrose | |
| Q71F-16Ti | 1.6 | Oxidizing Corrosive Medium | |
| Q71F-25Ti | 2.5 | Oxidizing Corrosive Medium |
